Tungsten Supply Chain Explained (2026): APT, Carbides, and Global Market Risks

A deep dive into the tungsten supply chain: APT bottlenecks, carbide demand, recycling, and global market risks.

John D

14 Apr 2026 — 16 min read

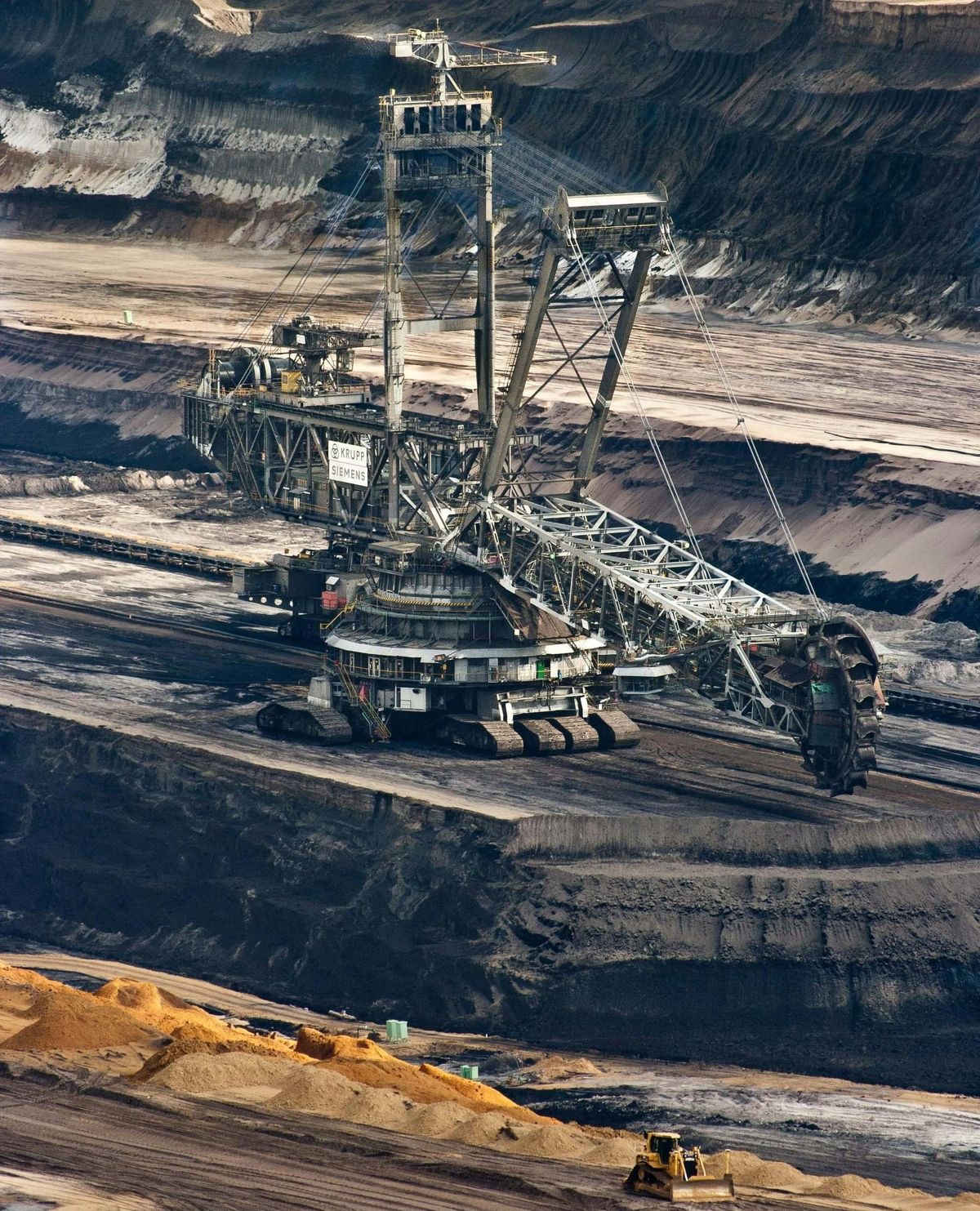

Mining Crane on Rocky Soil - Photo by Pixabay on Pexels

Global Tungsten Supply Chain and Primary Industrial Applications

Summary

Tungsten’s modern supply chain is best understood as a two-track industrial system: (1) mined concentrates (scheelite/wolframite) upgraded into chemical intermediates (especially APT) and then into powders/carbides, and (2) secondary supply from high-grade manufacturing scrap and end‑of‑life hardmetals that can often be recycled into powders with comparatively high material retention. [1]

On primary supply, global mine production in 2025 was about 85,000 t (W content), with the leading producer at 67,000 t (~79% of world mine output) and world reserves reported as >4.7 million t, including 2.5 million t in the leading reserve holder (China) (≥~53% of world reserves using the minimum world-reserves figure). [2]

The midstream is the strategic chokepoint: concentrate-to-chemical conversion (notably APT, plus oxides/tungstates) and powder/carbide manufacturing concentrate value addition and create high switching costs for end‑users. In 2025, the leading jurisdiction was simultaneously the world’s leading producer, importer, and consumer of tungsten concentrates, underscoring its role as the dominant refining hub even while producing most mined supply domestically. [2]

Demand is structurally dominated by hardmetals (cemented carbides) used in cutting, drilling, and wear parts; the U.S. end-use split is a useful proxy for global structure, with ~60% of apparent tungsten consumption going to cemented carbide parts and the remainder to alloys/steels, electrical/electronic components (including legacy lighting), and chemicals. [2]

Market structure and risk are shaped by: (a) high supply concentration and long project lead times; (b) price formation around APT and concentrate benchmarks (largely assessed rather than exchange-traded); and (c) policy interventions including tariff measures and export controls. In early 2025, export controls on selected tungsten items were reported alongside sharp benchmark price increases during 2025 (e.g., APT and concentrate price surges in Rotterdam assessments). [3]

Strategic responses visible in primary sources include stockpiling (e.g., U.S. government stockpile planning) and supply diversification efforts supported by defense-industrial policy instruments. [4]

Scope and analytic frame

This report follows a consulting / policy-analysis structure in the style of Deloitte and RAND Corporation: mapping the value chain, quantifying major nodes where primary data are available, and highlighting chokepoints and scenario-based implications for the next 5–10 years. [2]

Data emphasis is on primary and quasi‑primary sources including: U.S. Geological Survey (Mineral Commodity Summaries and Minerals Yearbook), UN Comtrade (via UNdata interface) run by the United Nations Statistics Division, and the World Trade Organization dispute docket for historical precedent on export restrictions. [5]

Supply chain architecture and key actors

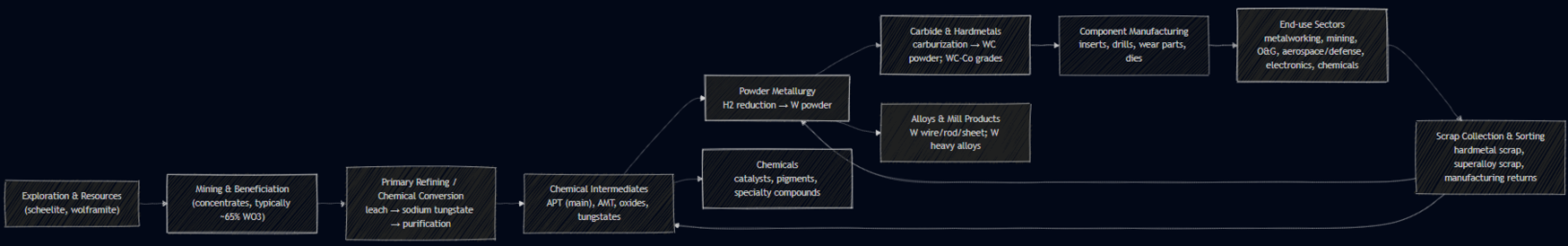

At industrial scale, the tungsten value chain is a concentrate → chemical intermediate → powder/carbide → component/tool sequence, with recycling loops most mature in hardmetals and powder manufacturing. [6]

Key actor classes (with representative roles) are:

Miners and concentrate producers. Operate mines or retreat tailings to produce WO₃-grade concentrates; output is typically sold via offtake to refiners/chemical plants or traded through specialty traders. The global production base includes industrial mines and importantly for due diligence; artisanal/small-scale production in some regions. [7]

Chemical processors / refiners. Convert concentrates (and sometimes scrap) into APT and other intermediates (oxides/tungstates). This step is a core chokepoint because it requires chemical processing know-how, impurity control, effluent management, and consistent feed specifications. The USGS yearbook describes major plants consuming mixed raw materials (concentrate, scrap, intermediates) to produce APT and oxides/tungstates. [8]

Powder metallurgy and carbide manufacturers. Reduce APT/oxide to tungsten metal powder and carburize to tungsten carbide powder; powders are formulated into ready-to-press grades and sintered into hardmetal components. The USGS yearbook summarizes U.S. processors that consumed APT/scrap/concentrate to produce tungsten carbide powder, chemicals, and/or tungsten metal powder. [9]

Tool/component OEMs and end-users. Convert hardmetal grades into cutting tools and wear components consumed across construction, metalworking, mining, and oil & gas drilling; also use tungsten in heavy alloys, superalloys, electronics, and chemicals. [10]

Traders and price-reporting agencies. Facilitate concentrates/intermediate trade and benchmark pricing (APT is the principal benchmark reference, commonly quoted in $/mtu with purity specifications). [3]

Recyclers and scrap processors. Recover tungsten from manufacturing scrap (“home scrap”) and old scrap (especially cemented carbide scrap), often feeding directly into powder/carbine production [11]

Primary supply: resources, ore grades, reserves, and global production

Ore types and indicative grades

Industrial tungsten ore minerals are dominated by scheelite (CaWO₄) and wolframite-group minerals ((Fe,Mn)WO₄); beneficiation upgrades these into concentrates suitable for downstream chemical conversion. [12]

Ore grades vary widely by deposit type and by whether material is primary ore or mine waste. A recent technical review reports typical primary-deposit grades on the order of ~0.3–1% WO₃, while historical tailings/waste sources may average markedly lower (e.g., ~0.1% WO₃ cited as a representative average in some mine-waste contexts), motivating interest in tailings reprocessing when prices are high or when waste liabilities can be reduced. [13]

Global mine production and reserves

USGS Mineral Commodity Summaries (2026) reports world mine production (W content) of ~85,000 t in 2025 (up from ~82,000 t in 2024) and world reserves >4.7 million t, with production and reserves heavily concentrated in a small set of producing countries. [2]

A country comparison based on USGS MCS 2026 data is below (production is W content). [2]

Country	2025 Mine Production (t W)	2024 Mine Production (t W)	Reserves (t W)	Refining / Downstream Capacity	Trade / Policy Notes
China	67,000	67,000	2,500,000	Dominant refinery and consumer; large APT, powder, and carbide ecosystem; also a significant importer of concentrates in some years.	Export restrictions historically litigated in WTO; export controls on selected items reported effective February 2025; U.S. tariff actions cited in USGS notes.
Vietnam	3,000	3,400	170,000	Integrated mine-to-chemicals capability described at Nui Phao / Masan chemicals plant, including APT, oxides, and sodium tungstate.	Due diligence expectations apply for tungsten supply chains globally under 3TG frameworks.
Russia	2,000	1,500	400,000	Concentrate production; downstream capacity exists but is less transparent in open sources.	Elevated geopolitical and sanctions exposure is a common risk consideration for trade-dependent buyers.
Kazakhstan	2,400	—	NA	New mine output noted as increasing world production, including the Boguty deposit start.	Joint-venture development activity with U.S. partners noted in USGS events and trends.
Bolivia	1,700	1,700	NA	Historically significant concentrate exporter from smaller-scale mining.	Concentrate-trade visibility is high in trade statistics under HS 2611.
Rwanda	1,300	1,300	NA	Concentrate exporter; relevant to 3TG due diligence frameworks.	OECD 3TG due diligence supplement explicitly covers tin, tantalum, and tungsten.
Australia	1,000	920	570,000*	Mix of primary and tailings retreatment projects described in the USGS yearbook.	New and non-dominant supply is often framed as a diversification opportunity.
Austria	840	840	10,000	Notable integrated processor described: WBH, including Mittersill mine and Bergla processing using imported raw materials.	EU regulatory environment can reinforce traceability and ESG expectations.
Spain	800	700	66,000	Concentrate producer and, in some years, a notable source for Chinese concentrate imports.	Trade routes can shift with concentrate availability and pricing.
Portugal	700	650	3,400	Concentrate producer; appears in U.S. import sourcing in USGS yearbook tables.	Trade visibility via HS code 2611 for ores and concentrates.
North Korea	2,000	1,900	29,000	Production and reserves estimates exist, but market access and verification are constrained.	Practical supply accessibility differs from geological endowment.

Data Table provided by the Means Initiative

Midstream: refining, processing hubs, trade flows, and chokepoints

What “refining” means in tungsten

Unlike many base metals where “refining” is primarily smelting + electrorefining, tungsten refining is chemistry-centric:

Concentrate is chemically attacked (typically via hydrometallurgical steps) to produce soluble tungstate (e.g., sodium tungstate) that can be purified. [15]
The dominant intermediate for metallic tungsten and downstream compounds is APT (ammonium paratungstate); recent technical literature explicitly characterizes APT as the main precursor/intermediate for metallic tungsten and its compounds. [16]
APT is reduced (often via hydrogen reduction) to tungsten powder, and tungsten powder is carburized to WC, which is then blended (e.g., with Co) into cemented carbides. A peer-reviewed paper describing industrial practice summarizes this sequence as concentrate → APT → H₂ reduction → W → carburization → WC. [17]

Key implication: the strategic choke points are (1) chemical conversion capacity and impurity control (APT/oxides/tungstates) and (2) powder metallurgy know-how and equipment for tungsten powder and carbide powders.

Major refining hubs and industrial clustering

Primary sources consistently indicate that the leading producer is also a major importer/consumer of tungsten concentrates, which is typical of a hub that combines domestic mining with imported concentrates to feed a large processing base. USGS MCS 2026 states that the leading producer remained the world’s leading producer, importer, and consumer of tungsten concentrates, with consumption and imports rising significantly in 2025. [2]

USGS Minerals Yearbook (Tungsten 2021 advance release) provides additional quantitative detail on hub behavior: it estimates the leading producer accounted for ~85% of world concentrate production in 2021 and still imported ~2,980 t W in concentrate that year, sourced from multiple countries, illustrating how concentrates from diverse origins can converge into a dominant midstream. [9]

Outside the dominant hub, the yearbook highlights a notable European integrated actor: Wolfram Bergbau und Hütten AG, which consumed a substantial volume of tungsten raw materials at its Bergla plant with a high share imported, indicating Europe’s role as a specialized processor even with limited domestic mine supply. [9]

The yearbook also documents integrated processing in Vietnam through Masan’s chemicals plant adjacent to the Nui Phao mine, producing APT, oxides, and sodium tungstate and expanding feed capacity, illustrating how “mine-to-chemicals” integration can partially bypass reliance on the dominant hub. [9]

Trade flows, tracking, and chokepoint visibility

A practical way to “see” the tungsten supply chain in trade data is by product category:

Ores and concentrates (HS 2611) represent upstream flows. [18]
Chemical intermediates include ammonium tungstates (including APT/AMT), tungsten oxides, and carbides in customs schedules; USGS MCS provides representative tariff schedule codes and product categories that align with these stages. [2]
Powders and articles (e.g., tungsten powders, waste/scrap) capture powder metallurgy and recycling-linked flows. [2]

The UNdata interface explicitly describes UN Comtrade as the underlying database storing extensive trade records across countries and years, and it can be filtered by year, flow, and reporting economy for HS-coded tungsten products. [18]

Chokepoints (analytically):

Chemical conversion nodes (APT/oxides/tungstates plants): high capex and permitting complexity relative to trading concentrates; sensitive to reagents, water, waste streams, and quality control. [15]
Powder/carbide capacity: downstream value-add and qualification barriers (tool performance, impurity tolerances); switching suppliers may require requalification. [19]
Compliance bottlenecks (3TG): smelters/refiners are focal points for due diligence and auditability; the OECD supplement explicitly distinguishes upstream (mine-to-smelter/refinery) and downstream roles for tin/tantalum/tungsten supply chains. [20]

Downstream: applications, demand structure, and technology trends

Demand structure by end use

Primary sources are consistent that the largest single use of tungsten is as tungsten carbide in cemented carbides (hardmetals). The USGS tungsten information page identifies cemented carbides as the largest use and links them to metalworking, mining, and construction. [21]

USGS MCS 2026 provides an explicit end-use split for the United States: ~60% of tungsten consumed is used in cemented carbide parts for cutting and wear applications; the remainder is used in alloys/specialty steels, electrical/electronic/heating/lighting components, and chemicals. [2]

Because tungsten use is strongly tied to industrial output and capital goods cycles, USGS notes that tungsten consumption is strongly influenced by economic conditions and industrial activity.

Primary applications table (material form, grades, and value chain position)

Application Cluster	Typical Tungsten Material Form	Typical Grade / Composition Signals (Indicative)	Value Chain Position (Where Value Is Added)	Comments on Demand Drivers
Hardmetals / cemented carbides (cutting, drilling, wear)	WC powder; WC-Co grades; sintered inserts and wear parts	Cemented carbides span wide W content; one review notes typical tungsten content in cemented carbide materials in the broad range of ~40–95 wt% depending on grade/form	Powder (W → WC) → hardmetal grades → tooling OEMs	Dominant usage; tied to machining intensity, mining/construction, and drilling activity 23
Aerospace & rotating machinery	Superalloys/tool steels with W additions; some W mill products	W used as alloying element; substitution pressure exists but often performance-limited	Alloying and component manufacturing	Driven by high-temperature strength needs; substitution tends to reduce rather than fully replace W use 2
Defense & high-density applications	Tungsten heavy alloys (W-Ni-Fe / W-Ni-Cu); composites for shielding	Heavy alloy formulations often include high W fractions; a tungsten heavy alloy patent example describes ≥75 wt% W in a high-density alloy feedstock	Powder metallurgy → sintered heavy-alloy components	Used for armaments/counterweights/shielding; policy-sensitive demand tail 21
Electronics (semiconductors, contacts, sputtering, heat sinks)	W metal targets/powder; tungsten hexafluoride (WF₆) for deposition	WF₆ is widely used for CVD processes forming tungsten films/coatings	Chemical gas supply → semiconductor fab materials; metalworking for sputter/targets	Demand linked to semiconductor capex and node architecture; WF₆ is a key precursor for tungsten film deposition 24
Chemical catalysts and specialty chemistry	WO₃ and tungsten-based oxides; tungstates; heteropoly acids	Tungsten oxide materials provide catalytic properties (acidity/redox/adsorption) highlighted in reviews of tungsten-based catalysts	Chemical intermediate stage (oxides/tungstates)	Environmental catalysis and chemical processing niches; often higher-margin but smaller tonnage than hardmetals 25
Lighting & legacy electrical (filaments, electrodes)	High-purity tungsten wire/rod	High-purity W mill products	W metal powder → mill products	Structural decline vs LEDs noted as substitution pathway in USGS substitutes section 10
Additive manufacturing (AM) and advanced manufacturing	W and W-alloy powders; WC-Co AM feedstocks	Example research demonstrates binder jetting of 95W heavy alloy and binder jet AM of WC-10%Co as feasible process routes	Powder production + AM qualification	Still small but strategically important for defense/aerospace prototyping and customized high-density parts 26

Data Table provided by the Means Initiative

Technology trends that can shift demand

Electrification and EVs (indirect effect). Tungsten is not a major battery cathode/anode metal, but electrification can increase machining intensity (motors, drive components, power electronics housings), supporting hardmetal demand through manufacturing capex cycles—consistent with USGS framing of tungsten demand as industrial-activity sensitive and hardmetal dominated. [22]

Additive manufacturing. The emergence of AM for tungsten heavy alloys and hardmetals could increase demand for specialized powders and qualification-intensive feedstocks, especially in defense/aerospace where complex geometries and high-density parts are valuable. [27]

Substitution and material efficiency. USGS explicitly identifies substitute pathways for cemented carbides (Mo/Nb/Ti carbides, ceramics, cermets, tool steels) and for other applications (molybdenum for some mill products; LEDs for lighting; depleted uranium/lead for high density where allowed), noting that many substitutes reduce rather than fully replace tungsten or impose performance/cost penalties. [2]

Market economics, recycling, ESG, geopolitical risk, and outlook scenarios

Price dynamics and market structure

Tungsten pricing is organized around benchmark assessments rather than a single dominant exchange contract: USGS reports benchmark concentrate prices (Rotterdam in-warehouse, quoted per metric ton unit of WO₃) and references specialized assessment providers as price sources. [2]

Price benchmarks are typically specified by chemical grade; for example, Fastmarkets describes benchmarks anchored to APT 88.5% WO₃ min in $/mtu with regional references, illustrating that benchmark definitions and product specifications are central to pricing. [28]

The 2025 price episode illustrates policy–price coupling: USGS MCS 2026 links a combination of increased tariffs on some tungsten products and the introduction of export controls on selected tungsten items (reported effective February 2025) with sharply higher APT and concentrate price levels during 2025. [2]

Unit economics note (practical): USGS specifies that one metric ton unit of WO₃ contains 7.93 kg of tungsten, which is essential when translating $/mtu benchmarks to $/kg‑W equivalents for procurement and margin analysis. [2]

Recycling and secondary supply

Secondary supply for tungsten is structurally important because hardmetals and powder metallurgy create concentrated, high-value scrap streams.

USGS recycling analysis notes that, in tungsten processing, recovery rates can be high, and losses minimized by recycling “home scrap” generated during processing, while also describing a range of scrap categories routed back into tungsten carbide and metal powder production. [11]

Cemented carbide scrap is particularly significant because it is intrinsically tungsten-rich; a review on tungsten carbide scrap recycling notes typical tungsten content levels on the order of ~40–95 wt% in scrapped cemented carbide materials, creating a strong incentive for closed-loop recycling routes (chemical or electrochemical recovery, zinc process variants, oxidize-and-recover routes, etc.). [29]

Economically, recycling tends to be most favorable where scrap is clean, segregated, and compositionally consistent (manufacturing scrap, spent inserts, known grades). Where scrap is dispersed or contaminated, collection and preprocessing costs can dominate, and the material may be downgraded into lower-value recovery routes.

Criticality, geopolitical risk, and chokepoint governance

Supply concentration and policy leverage. The combination of dominant mine output and dominant midstream role makes tungsten unusually exposed to policy shocks. USGS MCS 2026 quantifies the production and reserves concentration and highlights export controls and tariff measures as recent events impacting market pricing. [2]

Historical precedent: WTO dispute on export restrictions. The WTO’s DS431 dispute page explicitly frames the case as concerning export restrictions on rare earths, tungsten, and molybdenum; WTO summary material indicates that China’s export quotas were found inconsistent with GATT obligations and not justified under the cited exception. This is an important precedent for how far export restrictions can be challenged in multilateral trade frameworks (though new controls may be structured differently). [30]

3TG due diligence and reputational/financing risk. Tungsten is a “3TG” mineral subject to well-developed responsible sourcing expectations. The OECD due diligence supplement provides specific guidance for tin/tantalum/tungsten supply chains and distinguishes upstream and downstream responsibilities, effectively making smelters/refiners governance chokepoints. [20]

The USGS yearbook also references U.S. Government Accountability Office findings that tungsten concentrate production from Congo (Kinshasa) and adjoining countries represented only ~1–2% of world production in recent years while still being salient for conflict-minerals reporting, highlighting that risk salience is not proportional to tonnage. [9]

Stockpiles and strategic response instruments. USGS MCS includes U.S. government stockpile planning tables (potential acquisitions/disposals), and the Defense Logistics Agency identifies its Strategic Materials function as the official home for U.S. strategic materials programs, reflecting an institutional pathway for public stockpiling and demand assurance. [4]

USGS also notes that multiple projects in North America received awards under the Defense Production Act Title III, indicating use of defense-industrial financing tools to diversify supply. [2]

Key ESG vectors for tungsten resemble those of other hard‑rock mining and chemical processing chains but with tungsten-specific features:

Tailings and mine waste: A tungsten resources review emphasizes both the environmental risks associated with tungsten mine waste and the potential for reprocessing tailings, linking ESG remediation and secondary resource development in a single investment logic. [13]
Chemical processing footprint: Concentrate-to-APT conversion and purification processes require reagent handling and effluent controls; process complexity tends to increase as ore grades decline or concentrate impurity profiles worsen. [15]

Responsible sourcing controls: OECD’s 3TG framework centers traceability, risk assessment, and third‑party auditability—often operationalized at the smelter/refiner level—creating compliance costs but also enabling differentiated “conflict-free” procurement. [20]

Five-to-ten-year outlook with scenarios

The tungsten outlook is driven less by energy-transition “metal intensity” than by industrial capex cycles, defense procurement, and policy-driven supply constraints, with recycling acting as a partial buffer but not a full substitute for primary concentrate when demand grows. [31]

A scenario frame (2026–2036) consistent with observed chokepoints and primary-source signals is:

Scenario	Core Assumptions	Supply Chain Consequences	Likely Price / Availability Implications (Directional)
Base case: gradual diversification, steady industrial demand	Moderate global industrial growth; incremental new non-dominant mines; stable recycling; no major escalation of controls beyond current regime	Concentrate supply grows slowly outside the dominant hub; midstream remains concentrated; buyers expand dual-sourcing and inventory buffers	Prices remain volatile but mean-revert around marginal-cost plus policy risk premia; qualification and long-term contracts emphasize resilience 3
Tight supply / geopolitical fragmentation	Export licensing and controls remain binding or widen; trade frictions persist; defense demand increases; permitting delays slow non-dominant mines	Midstream chokepoints tighten; concentrates compete for chemical capacity; downstream toolmakers face allocation; governments increase stockpiling	Higher structural price levels and more frequent spikes; contract over spot prioritization; inventory becomes a strategic asset 32
High recycling + substitution acceleration	Strong incentives for scrap recovery; improved collection and sorting; faster adoption of ceramic, cermet, and tool-steel substitutes where acceptable	Secondary supply offsets more primary demand; some applications down-gauge tungsten via substitutions; higher demand for recycling-grade powders	Moderated long-run price pressure, but volatility persists; premium for high-purity powders, carbides, and certified recycled content rises 11

Data Table provided by the Means Initiative

Recommended primary sources to prioritize (for ongoing monitoring)

Geology, production, reserves, and country risk baselines

USGS Mineral Commodity Summaries (Tungsten, latest annual edition) for annual production/reserves tables and salient policy/price notes. [2]
USGS Minerals Yearbook (Tungsten, advance release) for deeper country narratives, processing descriptions, and trade details (including concentrate import sources). [9]

Trade flows and chokepoint quantification

UN Comtrade/UNdata for HS-coded trade flows (ores/concentrates and downstream products), enabling identification of dependence on specific exporters and hubs. [18]

Policy and trade-law precedent

WTO DS431 docket and WTO dispute summaries (rare earths, tungsten, molybdenum) to understand the boundary between resource policy and trade commitments. [30]

Criticality, due diligence, and responsible sourcing

OECD Due Diligence Guidance supplement on tin/tantalum/tungsten for supply chain governance frameworks and upstream/downstream expectations. [20]

Benchmark pricing and procurement references (supporting, not “primary” in the geological sense)

Benchmark publishers describing APT/concentrate assessment specifications (useful for procurement standardization and price-risk management). [28]

Company and asset-level intelligence (examples of report types to prioritize)

Annual reports/technical reports from integrated processors and major mines, especially those describing chemical conversion capacity (APT/oxides) and powder/hardmetal expansion plans; USGS yearbook provides examples of integrated processing nodes and offtake linkages suitable as starting points for issuer lists. [9]
